Cut To Length Line

Here you will see some of our steel coil leveling equipment, integrating scissor and drop-type stackers. This metal cut to length production line features hydraulic adjustment and the finished steel plates have uniform width and flatness, therefore, the final products made of steel plates have a better appearance and quality.

Product testing is performed including thickness measurement, width measurement, coating weight measurement, surface inspection and flatness inspection in order to satisfy different requirements of our customers in various industries.

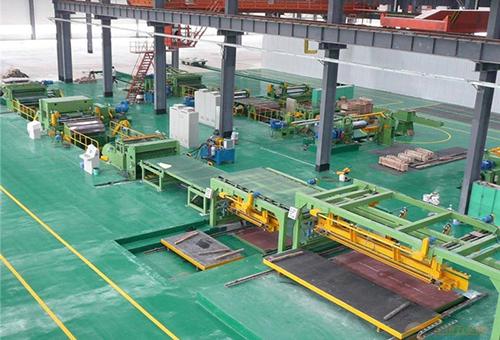

Thin coil cut to length line

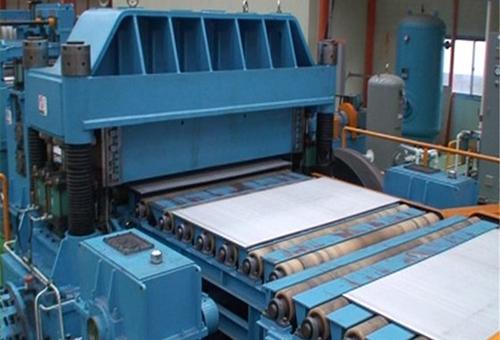

Middle thick coil cut to length

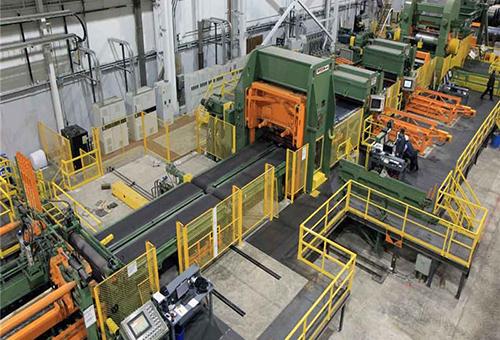

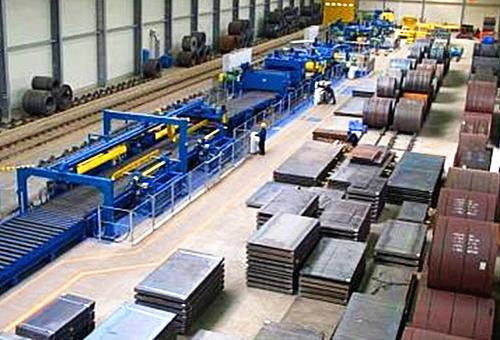

Thick coil cut to length line

The metal coil decoiling, leveling and cut to length line is applied on cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and other metal materials.

The high speed CTL machine (coil strip cut-to-length) is suitable for steel coils with a thickness of 0.2-2mm, 0.3-3mm, 0.6-4mm, or 1-5mm and the finished width and length can be adjusted according to your specific requirements.

• Fast speed and high precision.
  Maximum line speed can reach 100m/min, 25-30pcs/min in average;
  Leveling precision: ±1mm/㎡;
  Sheet length precision: ±0.5mm/m;
  Sheet diagonal length precision: ±0.5mm/m;
• If the loaded steel coil is lightweight, usually the single mandrel (cantilever) is adopted for this thin coil CTL machine.
• To make flat steel sheets, the diameter of leveling rollers should be properly calibrated; our leveling roller diameter is decided through comprehensive experience and precise engineering calculation.
• The automatic piling-up bracket can take over finished sheets and automatically pile them up in an orderly manner.
• The strip accumulator between the leveling machine and fine leveling machine is necessary to protect sheet surface and make sure the simultaneously work of leveling machine DC motor and fine leveling machine servo motor.

Remark: Parameters for reference only, other specs are available upon request.

• High precision.
  Maximum line speed can reach 30m/min, 7-8pcs/min in average;
  Leveling precision: ±1mm/㎡;
  Sheet length precision: ±0.5mm/m;
  Sheet diagonal length precision: ±0.5mm/m;
• If the loaded steel coil is lightweight, the single mandrel (cantilever) uncoiler is typically adopted; When the coil is big and heavy, Coils differ in coil weight, when the max coil weight is small, asingle mandrel (cantilever) uncoiler is adopted; when max coil weight is large, a double-cone uncoiler is adopted for middle thick coil cut-to-length lines.
• To make flat steel sheets, the diameter of leveling rollers should be properly calibrated; our leveling roller diameter is decided through comprehensive experience and precise engineering calculation.
• The support rollers installed on the bracket can tighten up the leveling rollers to make sure no deformation of leveling rollers while leveling.
• Product conveyor sends finished sheets onto the pneumatic packing platform.
• We adopt high quality parts supplied by famous brands, e.g. Yuken/Fuxin hydraulic parts, HRB/ZWZ/SKF bearings, etc. which can ensure good performance of the coil CTL line.

Remark: Parameters for reference only, other specs are available upon request.

• High precision.
  Maximum line speed can reach 20m/min, 4-5pcs/min in average;
  Leveling precision: ±1.5mm/㎡
  Sheet length precision: ±0.5mm/m
  Sheet diagonal length precision: ±1mm/m
• If the weight of thick plate coils is 30T, 35T or 40T, a double-cone uncoiler is suitable.
• Strong gantry type uncoiler including coil-head guide, press and hydraulic arm ensures smooth decoiling.
• To make flat steel sheets, the diameter of the leveling rollers should be properly calibrated; our leveling roller diameter is decided through comprehensive experience and precise engineering calculation.
• The support rollers installed on the bracket can tighten up the leveling rollers to make sure no deformation of leveling rollers while leveling.
• Two time leveling is arranged in the thick plate cut-to-length line to ensure good leveling effect.
• Customer can selectively assemble the edge trimmer to trim off useless edges.
• Product conveyor sends finished sheets onto pneumatic packing platform.
• We adopt high quality parts supplied by famous brands e.g. Yuken/Fuxin hydraulic parts, HRB/ZWZ/SKF bearings, etc. ensuring the good performance of the coil CTL line.

Remark: Parameters for reference only, other specs are available upon request.

TUBO Machinery is a professional manufacturer and exporter of steel coil cut-to-length production lines, and we have many other products such as steel coil slitting lines which includes a thin coil slitting line, medium thick coil slitting line and thick coil slitting line. Our products have been successfully exported to Germany, Netherlands, India, Indonesia, New Zealand, Syria, UAE, Russia, Kuwait, South Africa, Bangladesh and other countries and regions. We have received great praise from our clients.
