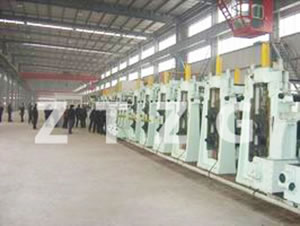

406 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 219mm-406mm in OD and 6.0mm-16.0mm in wall thickness, as well as corresponding square and rectangular pipes. This pipe making machine is ideal for manufacturing welded pipes and tubes for use in metallurgy, construction, transportation, machinery, and vehicle industries.
Basic technical information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 580-760mm
Coil OD: Max 2300mm
Coil Weight: 35t
Production Speed: 30 m/min
Production capacity: 180,000ton/year
Direction: left or right decided by customers.
Line Area: 160m (length) ×16m (width)
Tube Bottom Passline (Above floor level): +1000mm
Specifications of high frequency longitudinal welded pipe production line, 406
| Model | Specification(mm) | Thickness (mm) | Mill Installed Capacity (kw) | Line Area(m) - programmable | Working Speed (M/min.) | |
| Circular | Rectangular & Square | |||||
| 406 | Ф219-Ф406 | 170mm×170mm - 330mm×330mm | 6-16 | 880KW | 160m*16m | 30 |
We is an experienced longitudinal welded pipe production line manufacturer and supplier in China. In addition to pipe making machine, we also other products such as abroach cold rolled section steel forming machine, precision pipe mill, and more. Thanks to our consistent dedication to quality and service, our company has received the ISO9001:2008 certificate. Today, our tube making machine products are reliable, durable, economical, and are very popular with customers in United States, Kazakhstan, Uzbekistan, Iran, among other countries.
If you are interested in our products, we welcome you to contact us at any time!
