Multifunctional Cold Rolled Section Steel / Welded Pipe Making Machine

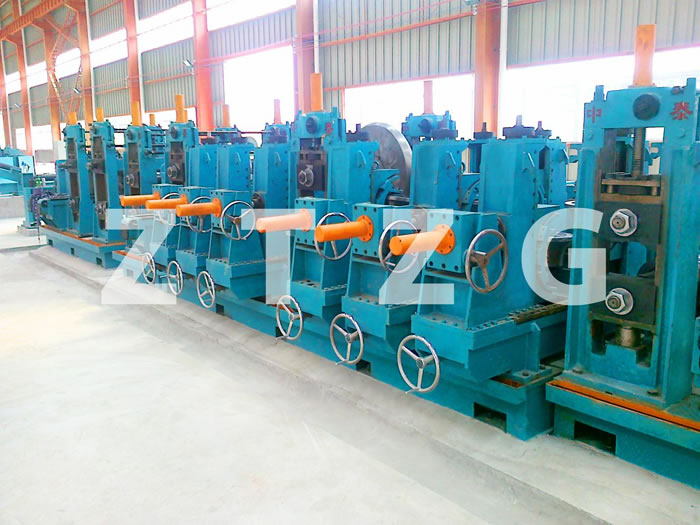

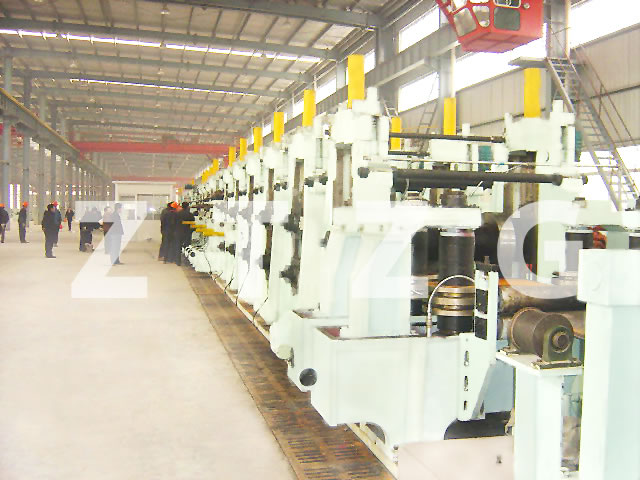

As its name suggests, the multifunctional cold rolled section steel, welded pipe making machine is designed to manufacture different types of products, including round pipes, square pipe and rectangular pipes. It can produce both direct to square and round to square pipes. Meanwhile, it can also be used as cold rolled section steel forming machine to manufacture abroach cold rolled section steel. The products produced by the equipment are extensively used in metallurgy, construction, transportation, machinery and vehicle industries.

1. ZTF Forming Technology Used in Producing Round Pipe
When the multifunctional welded pipe making machine is used to manufacture round pipes, it has the following advantages.
(1) Save 60% tooling cost
(2) Before the closed pore, one set of rolls can be used to produce lots of sized round pipe within the range. All the rolls before this section can be shared use and no need to change.
(3) Limited production time and labor cost
(4) Easy to restore rolls
(5) Convenient to restore and adjust.

2. Directly Square Forming Techniques in Producing Square & Rectangular Pipe
(1) Compared with round to square forming technology, square to square technology allows the multifunctional cold rolled section steel or welded pipe making machine to manufacture better shapes of angles for cross section, flatter brim, and regular outlooks.
(2) Ease more burden of the whole production line, especially for the sizing section.
(3) 2.4-3% less strip width shrinkage than round square forming method, so saving more raw materials
(4) By using advanced multi-point bending, the multifunctional welded pipe production line can effectively avoid the axial force and side abrasion, reduce the forming step, ensure the quality, and reduce power wastage and roll abrasion.
(5) By combined rolls, one set mould can be used to produce lots of square and rectangular pipes coming with different specifications. This can decrease the storage of rolls, save 80% roll costs, fasten the bankroll turnover, and shorten developing time for new production lines.

3. Produce Abroach Cold Rolled Section Steel
The multifunctional cold rolled section steel, welded pipe making machine can also be used for manufacturing simple abroach cold rolled section steel such as directly formed channel steel, C shaped steel, Z shaped steel. The rolls can be basically shared with directly square forming technology.

Technical parameters of multifunctional cold rolled section steel / welded pipe making machine

Model Specification(mm) Thickness (mm) Mill Installed Capacity (kw) Line Area (m) - programmable Working Speed (M/min.)
Circular Rectangular & Square
140 Ф60-Ф140 50mm×50mm - 110mm×110mm 2-5 180KW 80m*6.5m 60
165 Ф76-Ф165 60mm×60mm - 130mm×130mm 2-6 220KW 85m*7m 50
219 Ф89-Ф219 70mmx70mm - 170mm×170mm 2-8 280KW 100m*9m 50
273 Ф114-Ф273 90mm×90mm - 210mm×210mm 3-10 350KW 120m*10m 45
325 Ф140-Ф325 90mm×90mm - 250mm×250mm 4-12.7 430KW 130m*11m 40
377 Ф165-Ф377 130mmx130mm -280mmx280mm 4-14 580KW 145m*13m 35
406 Ф219-Ф406 170mm×170mm - 330mm×330mm 6-16 880KW 160m*16m 30
508 Ф273-Ф508 210mmx210mm-400mmx400mm 6-18 1000KW 300m*30m 25
660 Ф325-Ф660 250mmx250mm -520mmx520mm 6-20 1200KW 350m*35m 20

Note: We can design and manufacture pipe making machine according to customers' requirements.

As an experienced multifunctional cold rolled section steel forming machine, welded pipe making machine manufacturer and supplier in China, we at We Company are committed to satisfying customers’ needs by providing an extensive line of tube making machine products. pipe making machine and stainless steel pipe making machine are some of our popular products. As these products are reliable, durable and economical, they are sought after by customers in United States, Kazakhstan, Uzbekistan, Iran, among other countries.
We look forward to doing business with more customers worldwide. If you would like to learn more about our products, please feel free to contact us.
